Product Name Spiral Cable Glands (Standard type)(UL)
Thread: Metric, PG, G(PF), and NPT thread

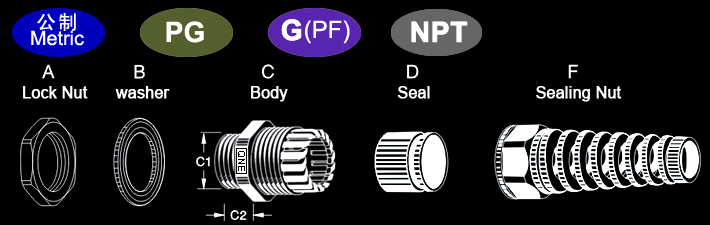

Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. F parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, sealing nut have a “click”sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.

编号

螺牙规格

电缆范围

螺纹外径

螺纹长度

扳手径

包装

Item.No.

Thread

Cable Range

Thread O.D.

Thread Length

Spanner Size

Std.Pkg

Ф(mm)

C1(mm)

C2(mm)

A&F(mm)

(pcs)

SCG-M12S -3

M12 x 1.5

1/3

12

8.5

18/15

50

SCG-M12S -6

3/6

12

8.5

18/15

50

SCG-M12SL-3

1/3

12

15

18/15

50

SCG-M12SL-6

3/6

12

15

18/15

50

SCG-M12 -5

2/5

12

8.5

18/19

50

SCG-M12 -7

3/7

12

8.5

18/19

50

SCG-M12L -5

2/5

12

15

18/19

50

SCG-M12L -7

3/7

12

15

18/19

50

SCG-M16S -5.5

M16 x 1.5

3-5.5

16

10

22/19

50

SCG-M16S -8

4/8

16

10

22/19

50

SCG-M16SL-5.5

3-5.5

16

15

22/19

50

SCG-M16SL-8

3/8

16

15

22/19

50

SCG-M16 -7

3/7

16

10

22/22

50

SCG-M16 -10

4/10

16

10

22/22

50

SCG-M16L -7

3/7

16

15

22/22

50

SCG-M16L -10

4/10

16

15

22/22

50

SCG-M18 -7

M18 x 1.5

3/7

18

10

24/22

50

SCG-M18 -10

4/10

18

10

24/22

50

SCG-M18L -7

3/7

18

15

24/22

50

SCG-M18L -10

4/10

18

15

24/22

50

SCG-M20M -7

M20 x 1.5

3/7

20

10

27/22

50

SCG-M20M -10

5/10

20

10

27/22

50

SCG-M20S -9

5/9

20

10

27/24

20

SCG-M20S -12.5

6-12.5

20

10

27/24

20

SCG-M20SL -9

5/9

20

15

27/24

50

SCG-M20SL-12.5

6-12.5

20

15

27/24

50

SCG-M20 -11

3/11

20

11

27/27

20

SCG-M20 -13.5

5-13.5

20

11

27/27

20

SCG-M20L -11

3/11

20

15

27/27

20

SCG-M20L -13.5

5-13.5

20

15

27/27

20

SCG-M22 -11

M22 x 1.5

5/11

22

11

30/27

50

SCG-M22 -13.5

8.5-14

22

11

30/27

50

SCG-M24 -11

M24 x 1.5

5/11

24

11

30/27

50

SCG-M24 -14

8.5-14

24

11

30/27

50

SCG-M25S -11

M25 x 1.5

5/11

25

11.6

33/27

50

SCG-M25S -14

8.5-14

25

11.6

33/27

50

SCG-M25 -16

8/16

25

11.6

33/33

20

SCG-M25 -18

10/18

25

11.6

33/33

20

SCG-M25L -16

8/16

25

15

33/33

20

SCG-M25L -18

10/18

25

15

33/33

20

SCG-M27-16

M27 x 1.5

8/16

27

12

45/33

50

SCG-M27-18

10/18

27

12

45/33

50

SCG-M32S -16

M32 x 1.5

8/16

32

15

45/33

50

SCG-M32S -18

10/18

32

15

45/33

50

SCG-M32 -17.5

13-17.5

32

15

45/41

20

SCG-M32 -25

17-25

32

15

45/41

20

SCG-M36 -17.5

M36 x 1.5

13-17.5

36

12

45/41

20

SCG-M36 -25

17-25

36

12

45/41

20

SCG-M40S -17.5

M40 x 1.5

13-17.5

40

15

50/41

20

SCG-M40S -25

17-25

40

15

50/41

20

SCG-PG7S -3

PG7

1/3

12.5

8

17/15

50

SCG-PG7S -6

3/6

12.5

8

17/15

50

SCG-PG7SL -3

1/3

12.5

15

17/15

50

SCG-PG7SL -6

3/6

12.5

15

17/15

50

SCG-PG7 -5

2/5

12.5

8

17/19

50

SCG-PG7 -7

3/7

12.5

8

17/19

50

SCG-PG9 -5.5

PG9

2-5.5

15.2

8.2

22/19

50

SCG-PG9 -7.5

3-7.5

15.2

8.2

22/19

50

SCG-PG9L -5.5

3-5.5

15.2

15

22/19

50

SCG-PG9L -7.5

4/8

15.2

15

22/19

50

SCG-PG11-7

PG11

3/7

18.6

10

24/22

50

SCG-PG11-10

4/10

18.6

10

24/22

50

SCG-PG11L -7

3/7

18.6

15

24/22

50

SCG-PG11L -10

5/10

18.6

15

24/22

50

SCG-PG13.5-9

PG13.5

3/9

20.4

10

27/24

20

SCG-PG13.5-12.5

5-12.5

20.4

10

27/24

20

SCG-PG13.5L-9

5/9

20.4

15

27/24

50

SCG-PG13.5L-12.5

6-12.5

20.4

15

27/24

50

SCG-PG16-11

PG16

5/11

22.5

10.8

30/27

20

SCG-PG16-14

6/14

22.5

10.8

30/27

20

SCG-PG16L -11

5/11

22.5

15

30/27

50

SCG-PG16L -14

8.5-14

22.5

15

30/27

50

SCG-PG19 -11

PG19

5/11

24

11

30/27

50

SCG-PG19 -14

8.5-14

24

11

30/27

50

SCG-PG21-15.5

PG21

8-15.5

28.3

12

36/33

20

SCG-PG21-17.5

10-17.5

28.3

12

36/33

20

SCG-PG21L -13

7/13

28.3

15

36/33

20

SCG-PG21L -17.5

12.5-18

28.3

15

36/33

20

SCG-PG29S-13

PG29

7/13

37

12

46/33

20

SCG-PG29S-18

13-17.5

37

12

46/33

20

SCG-PG29 -17.5

7/13

37

12

46/41

20

SCG-PG29 -25

17-25

37

12

46/41

20

SCG-G1/4 -5

G (PF) 1/4"

3-5.3

13.157

8.5

19/19

50

SCG-G1/4 -8

4/8

13.157

8.5

19/19

50

SCG-G3/8-7

GPF) 3/8"

3/7

16.7

10

22/22

50

SCG-G3/8-10

4/10

16.7

10

22/22

50

SCG-G1/2-9

G (PF) 1/2"

3/9

20.5

10

27/24

20

SCG-G1/2-12.5

5-12.5

20.5

10

27/24

20

SCG-G3/4-16

G (PF) 3/4"

8/16

26.4

12

33/27

20

SCG-G3/4-18

10/18

26.4

12

33/27

20

SCG-G1-16

G (PF) 1"

13-17.5

33.249

15

46/41

20

SCG-G1-18

17-25

33.249

15

46/41

20

SCG-NPT3/8-7

NPT3/8"

3-5.3

17

10

22

50

SCG-NPT3/8-10

4/10

17

10

22

50

SCG-NPT1/2-9

NPT1/2"

5/9

24

10

24

20

SCG-NPT1/2-13

7/13

24

10

24

20

SCG-NPT3/4-16

NPT3/4"

8/16

26.5

15

33

20

SCG-NPT3/4-18

10/18

26.5

15

33

20

SCG-NPT1-16

NPT 1"

13-17.5

33.249

15

41

20

SCG-NPT1-18

17-25

33.249

15

41

20
