Product Name
Nylon Cable Glands (Multi-hole & Flat-hole)

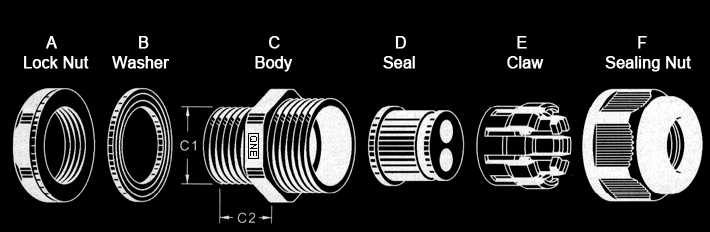

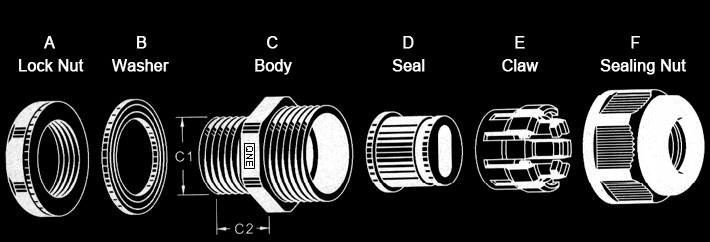

Thread: Metric, PG, G(PF), and NPT threadMaterials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. E. F parts; EPDM rubber for B. D parts.Protection degree: IP68Working temperature: -40℃ to 100℃Features: The claws and seals of excellent design, sealing nut have a “click”sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency. Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.Seals: For cable outlet holes (several holes and flat), all the cables can not easily entangled and waterproof respectively.
Seal Holes
Thread
Cat No.
Cable RangeФ
Thread 0.D.
Panel Mounting Hole
Thread Length
Spanner Size
Std.Pkg.
Black
Gray
M12×1.5
MG12A-H2-03B
MG12A-H2-03G
3~1.2
12
12~12.3
9
18/19
50
M16×1.5
MG16A-H2-04B
MG16A-H2-04G
4~1.6
16
16~16.3
15
22/22
50
M20×1.5
MG20A-H2-03B
MG20A-H2-03G
3.5~2
20
20~20.3
15
27/27
50
M20×1.5
MG20A-H2-O6B
MG20A-H2-06G
6~2.5
20
20~20.3
15
27/27
50
M25×1.5
MG25A-H2-05B
MG25A-H2-05G
5~2
25
25~25.4
15
33/33
50
M25×1.5
MG25A-H2-08B
MG25A-H2-08G
8.7~4.5
25
25~25.4
15
33/33
50
M32×1.5
MG32A-H2-10B
MG32A-H2-10G
10~5
32
32~32.4
15
41/41
10
M12×1.5
MG12A-H3-02B
MG12A-H3-02G
2.6~1.2
12
12~12.3
9
18/19
50
M16×1.5
MG16A-H3-04B
MG16A-H3-04G
4~1.6
16
16~16.3
15
22/22
50
M20×1.5
MG20A-H3-03B
MG20A-H3-03G
3.5~1.5
20
20~20.3
15
27/27
50
M20×1.5
MG20A-H3-05B
MG20A-H3-05G
5~2
20
20~20.3
15
27/27
50
M25×1.5
MG25A-H3-05B
MG25A-H3-05G
5~2
25
25~25.4
15
33/33
50
M25×1.5
MG25A-H3-08B
MG25A-H3-08G
8~4
25
25~25.4
15
33/33
50
M32×1.5
MG32A-H3-10B
MG32A-H3-10G
10~5
32
32~32.4
15
41/41
10
M12×1.5
MG12A-H4-02B
MG12A-H4-02G
2.3~1
12
12~12.3
9
18/19
50
M16×1.5
MG16A-H4-03B
MG16A-H4-03G
3~1.2
16
16~16.3
15
22/22
50
M20×1.5
MG20A-H4-03B
MG20A-H4-03G
3.5~1.5
20
20~20.3
15
27/27
50
M20×1.5
MG20A-H4-04B
MG20A-H4-04G
4.5~2
20
20~20.3
15
27/27
50
M25×1.5
MG25A-H4-05B
MG25A-H4-05G
5~2
25
25~25.4
15
33/33
50
M25×1.5
MG25A-H4-07B
MG25A-H4-07G
7~3.5
25
25~25.4
15
33/33
50
M32×1.5
MG32A-H4-09B
MG32A-H4-09G
9~4.5
32
32~32.4
15
41/41
10
M16×1.5
MG16A-H5-02B
MG16A-H5-02G
2.5~1
16
16~16.3
15
22/22
50
M20×1.5
MG20A-H5-03B
MG20A-H5-03G
3~1.2
20
20~20.3
15
27/27
50
M20×1.5
MG20A-H5-04B
MG20A-H5-04G
4.2~1.7
20
20~20.3
15
27/27
50
M25×1.5
MG25A-H5-03B
MG25A-H5-03G
3.5~1.5
25
25~25.4
15
33/33
50
M25×1.5
MG25A-H5-06B
MG25A-H5-06G
6~3
25
25~25.4
15
33/33
50
M32×1.5
MG32A-H5-08B
MG32A-H5-08G
8~4
32
32~32.4
15
41/41
10
M16×1.5
MG16A-H6-02B
MG16A-H6-02G
2~1
16
16~16.3
15
22/22
50
M20×1.5
MG20A-H6-03B
MG20A-H6-03G
3~1.2
20
20~20.3
15
27/27
50
M25×1.5
MG25A-H6-03B
MG25A-H6-03G
3.5~1.5
25
25~25.4
15
33/33
50
M25×1.5
MG25A-H6-05B
MG25A-H6-05G
5.3~2.4
25
25~25.4
15
33/33
50
M32×1.5
MG32A-H6-07B
MG32A-H6-07G
7~3.5
32
32~32.4
15
41/41
10
M20×1.5
MG20A-H7-03B
MG20A-H7-03G
3~1.2
20
20~20.3
15
27/27
50
M25×1.5
MG25A-H7-03B
MG25A-H7-03G
3.5~1.5
25
25~25.4
15
33/33
50
M32×1.5
MG32A-H7-06B
MG32A-H7-06G
6~3
32
32~32.4
15
41/41
10
M20×1.5
MG20A-H8-02B
MG20A-H8-02G
2.8~1
20
20~20.3
15
27/27
50
M25×1.5
MG25A-H8-03B
MG25A-H8-03G
3.5~1.5
25
25~25.4
15
33/33
50
M16×1.5
MG16A-0610B
MG16A-06106
6×10
16
16~16.3
15
22/22
50
M20×1.5
MG20A-06128
MG20A-06126
6.5×12
20
20~20.3
15
27/27
50
M20×1.5
MG20A-06148
MG20A-06146
6×14
20
20~20.3
15
27/27
50
M20×1.5
MG20A-07128
MG20A-07126
7×12
20
20~20.3
15
27/27
50
M20×1.5
MG20A-07148
MG20A-07146
7×14
20
20~20.3
15
27/27
50
M25×1.5
MG25A-06148
MG25A-06146
6×14
25
25~25.4
15
33/33
50
M25×1.5
MG25A-0714B
MG25A-07146
7×14
25
25~25.4
15
33/33
50
M32×1.5
MG32A-0822B
MG32A-08226
8×22
32
32~32.4
15
41/41
10
M40×1.5
MG40A-10288
MG40A-10286
10×28.5
40
40~40.3
20
50/50
10
M40×1.5
MG40A-0529B
MG40A-05296
5.5×29
40
40~40.3
20
50/50
10
