Material:UL certificated NYLON66,flammability V-2
Use:This product can be used to convert external threads into internal threads; or to achieve the connection of specifications of different externally threaded products. Can be customized according to customer requirements, producing different thread lengths and conversion between other different threads
Independent design and development,Exclusive

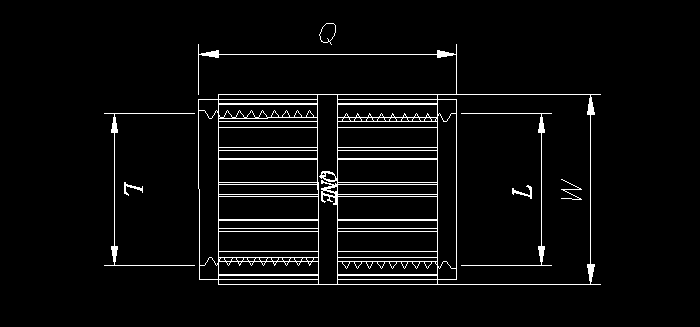

型號
|
螺紋規格
|
螺紋長度Q
|
W 寬度
|
包裝
|
Item No.
|
L(鐵板孔徑)
|
Thread length
|
W. across flats
|
Packing
|
|
External threa
|
|
|
|
LWZHQ-M16
|
M16X1.5
|
31.5
|
21
|
50pcs
|
LWZHQ-M20
|
M20X1.5
|
31.5
|
25
|
50pcs
|
LWZHQ-M25
|
M25X1.5
|
31.5
|
30
|
50pcs
|
LWZHQ-M32
|
M32X1.5
|
31.5
|
37
|
50pcs
|
LWZHQ-M40
|
M40X1.5
|
31.5
|
45
|
20pcs
|
LWZHQ-M50
|
M50X1.5
|
35
|
55
|
20pcs
|
LWZHQ-M63
|
M63X1.5
|
35
|
68
|
20pcs
|
|
|
|
|
|
|
