| 产品名称： |

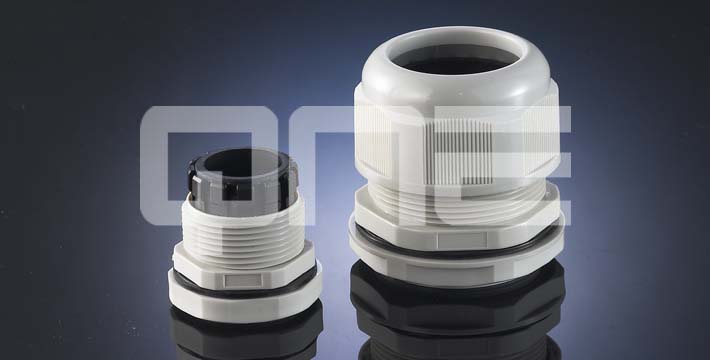

尼龙电缆固定头MG、PG型（分体） |
|
·螺牙规格:
·产品材质:
·保护等级:
·工作温度:
·产品特性:
·颜色种类:
|
公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。
A.C.E.F部分采用UL认可之尼龙PA66(防火等级UL94V-2)制成;(可定制UL认可的V-0防火等级尼龙原料);
B.D部分采用三元乙丙耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
IP68-10
静态-40℃至100℃，或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃.
特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
黑色、灰色，其它颜色可定做。
|
|

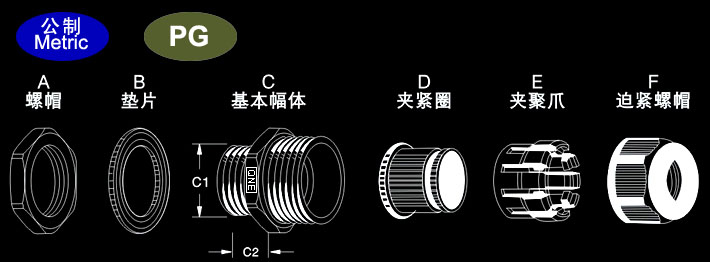

螺牙规格
|
编号
|
电缆范围
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
|
|
Ф(mm)
|
C1(mm)
|
C2(mm)
|
A&F(mm)
|
(pcs)
|
|
M12 x 1.5
|
NCG-M12A -5.5
|
3-5.5
|
12
|
8.5
|
18/19
|
50
|
|
NCG-M12A -8
|
4.5-7.8
|
12
|
8.5
|
18/19
|
50
|
|
M16 x 1.5
|
NCG-M16AS -5.5-ST
|
3-5.5
|
16
|
10
|
22/19
|
50
|
|
NCG-M16AS -8-ST
|
4-8
|
16
|
10
|
22/19
|
50
|
|
NCG-M16A -7-ST
|
4-7
|
16
|
10
|
22/22
|
50
|
|
NCG-M16A -10-ST
|
6-10
|
16
|
10
|
22/22
|
50
|
|
NCG-M16AL -7
|
4-7
|
16
|
15
|
22/22
|
50
|
|
NCG-M16AL -10
|
6-10
|
16
|
15
|
22/22
|
50
|
|
M20 x 1.5
|
NCG-M20AS -9-ST
|
5-9
|
20
|
10
|
27/24
|
50
|
|
NCG-M20AS -12.5-ST
|
6-12.5
|
20
|
10
|
27/24
|
50
|
|
NCG-M20A -11-ST
|
6-11
|
20
|
10
|
27/27
|
50
|
|
NCG-M20A -14-ST
|
9-14
|
20
|
10
|
27/27
|
50
|
|
NCG-M20AL -11
|
6-11
|
20
|
15
|
27/27
|
50
|
|
NCG-M20AL -14
|
9-14
|
20
|
15
|
27/27
|
50
|
|
M22 x 1.5
|
NCG-M22A -11-ST
|
6-11
|
22
|
10
|
27/27
|
50
|
|
NCG-M22A -14-ST
|
9-14
|
22
|
10
|
27/27
|
50
|
|
M25 x 1.5
|
NCG-M25AS -11--ST
|
6-11
|
25
|
10
|
33/27
|
50
|
|
NCG-M25AS -14--ST
|
9-14
|
25
|
10
|
33/27
|
50
|
|
NCG-M25A -16-ST
|
10-16
|
25
|
10
|
33/33
|
50
|
|
NCG-M25A -18-ST
|
13-18
|
25
|
10
|
33/33
|
50
|
|
NCG-M25AL -16
|
10-16
|
25
|
15
|
33/33
|
50
|
|
NCG-M25AL -18
|
13-18
|
25
|
15
|
33/33
|
50
|
|
M32 x 1.5
|
NCG-M32A -22
|
15-22
|
32
|
15
|
41/42
|
20
|
|
NCG-M32A -25
|
18-25
|
32
|
15
|
41/42
|
20
|
|
M40 x 1.5
|
NCG-M40A -26
|
20-26
|
40
|
20
|
50/52
|
10
|
|
NCG-M40A -31
|
24-31
|
40
|
20
|
50/52
|
10
|
|
M50 x 1.5
|
NCG-M50A -33
|
25-33
|
50
|
22
|
62/62
|
10
|
|
NCG-M50A -41
|
31-41
|
50
|
22
|
62/62
|
10
|
|
M63 x 1.5
|
NCG-M63A -46
|
39-46
|
63
|
25
|
75/75
|
10
|
|
NCG-M63A -51
|
44-51
|
63
|
25
|
75/75
|
10
|
|
M75 x 2.0
|
NCG-M75A -60
|
50-60
|
75
|
25
|
92/92
|
1
|
|
NCG-M75A -66
|
56-66
|
75
|
25
|
92/92
|
1
|
|
M90 x 2.0
|
NCG-M90A -68
|
58-68
|
90
|
25
|
110/110
|
1
|
|
NCG-M90A -77
|
66-77
|
90
|
25
|
110/110
|
1
|
|
螺牙规格
|
编号
|
电缆范围
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
|
|
Ф(mm)
|
C1(mm)
|
C2(mm)
|
A&F(mm)
|
(pcs)
|
|
PG7
|
NCG-PG7A -5.5
|
3-5.5
|
12.5
|
8
|
17/19
|
50
|
|
NCG-PG7A -8
|
4.5-7.8
|
12.5
|
8
|
17/19
|
50
|
|
PG9
|
NCG-PG9A -5.5
|
3-5.5
|
15.2
|
8.2
|
22/19
|
50
|
|
NCG-PG9A -8
|
4.5-7.8
|
15.2
|
8.2
|
22/19
|
50
|
|
PG11
|
NCG-PG11A -7
|
4-7
|
18.6
|
10
|
24/22
|
50
|
|
NCG-PG11A -10
|
6-10
|
18.6
|
10
|
24/22
|
50
|
|
PG13.5
|
NCG-PG13.5A-8.8
|
5-8.8
|
20.4
|
10
|
27/24
|
50
|
|
NCG-PG13.5A-12.5
|
7-12.5
|
20.4
|
10
|
27/24
|
50
|
|
NCG-PG13.5AZ-11
|
6-11
|
20.4
|
10.8
|
27/27
|
50
|
|
NCG-PG13.5AZ-14
|
9-14
|
20.4
|
10.8
|
27/27
|
50
|
|
PG16
|
NCG-PG16A -11
|
6-11
|
22.5
|
10.8
|
30/27
|
50
|
|
NCG-PG16A -14
|
9-14
|
22.5
|
10.8
|
30/27
|
50
|
|
NCG-PG16AZ-15
|
10-15
|
22.5
|
12
|
30/33
|
50
|
|
NCG-PG16AZ -17
|
13-17
|
22.5
|
12
|
30/33
|
50
|
|
PG21
|
NCG-PG21A -16
|
10-16
|
28.3
|
12
|
36/33
|
50
|
|
NCG-PG21A -18
|
13-18
|
28.3
|
12
|
36/33
|
50
|
|
PG29
|
NCG-PG29A -22
|
15-22
|
37
|
12
|
46/41
|
20
|
|
NCG-PG29A -24
|
18-25
|
37
|
12
|
46/41
|
20
|
|
PG36
|
NCG-PG36A -26
|
20-26
|
47
|
14
|
57/52
|
10
|
|
NCG-PG36A -31
|
24-31
|
47
|
14
|
57/52
|
10
|
|
PG42
|
NCG-PG42A -33
|
25-33
|
54
|
15
|
64/62
|
10
|
|
NCG-PG42A -41
|
31-41
|
54
|
15
|
64/62
|
10
|
|
螺牙规格
|
编号
|
电缆范围
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
|
|
Ф(mm)
|
C1(mm)
|
C2(mm)
|
A&F(mm)
|
(pcs)
|
|
G 1/4"
|
NCG-G 1/4A -5.5
|
3-5.5
|
13.157
|
8
|
19/19
|
50
|
|
NCG-G 1/4A -8
|
4.5-7.8
|
13.157
|
8
|
19/19
|
50
|
|
G 3/8"
|
NCG-G 3/8AL -7
|
4-7
|
16.662
|
15
|
22/22
|
50
|
|
NCG-G 3/8AL -10
|
6-10
|
16.662
|
15
|
22/22
|
50
|
|
G 1/2"
|
NCG-G 1/2AL -11
|
6-11
|
20.955
|
15
|
27/24
|
50
|
|
NCG-G 1/2AL -14
|
9-14
|
20.955
|
15
|
27/24
|
50
|
|
G 3/4"
|
NCG-G 3/4AL -16
|
10-16
|
26.441
|
15
|
36/33
|
50
|
|
NCG-G 3/4AL -18
|
13-18
|
26.441
|
15
|
36/33
|
50
|
|
G 1"
|
NCG-G 1AL -22
|
15-22
|
33.249
|
15
|
46/41
|
20
|
|
NCG-G 1AL -24
|
18-25
|
33.249
|
15
|
46/41
|
20
|
|
G 1 1/4"
|
NCG-G 1 1/4AL -26
|
20-26
|
41.91
|
16
|
57/52
|
10
|
|
NCG-G 1 1/4AL -31
|
24-31
|
41.91
|
16
|
57/52
|
10
|
|
G 1 1/2"
|
NCG-G 1 1/2AL -33
|
25-33
|
48
|
22
|
60/62
|
10
|
|
NCG-G 1 1/2AL -41
|
31-41
|
48
|
22
|
60/62
|
10
|
|
G 2"
|
NCG-G 2AL -46
|
39-46
|
60
|
25
|
75/75
|
10
|
|
NCG-G 2AL -51
|
44-51
|
60
|
25
|
75/75
|
10
|
|
|
|
