| 产品名称： |

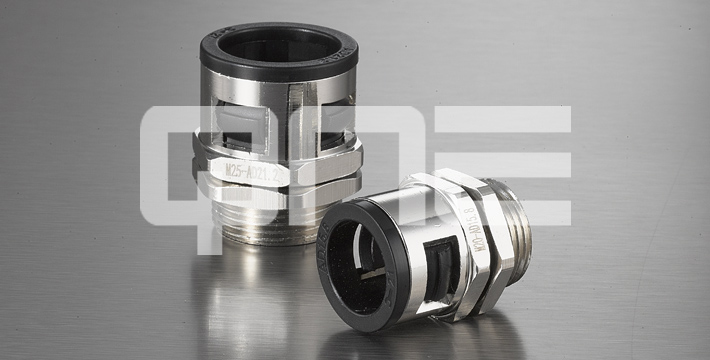

金属快速接头 |
|
·螺牙规格：
·产品材质：
·工作温度：
·产品特性：
|
公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙（可定制）。
采用A.C.部分以黄铜镀镍制成,F.部分UL认可之尼龙PA66(防火等级UL94V-2)制成，(可定制）
静态-40℃至100℃，或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃.
特殊夹紧爪之设计，夹紧浪管抗拉力强，超快速拔插装卸，提高安装效率。
|
|
适配软管
|
编号
|
螺牙规格
|

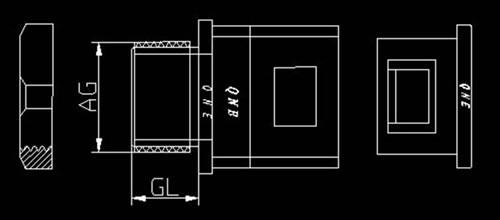

螺纹外径
|
螺纹长度
|
包装
|
|
AD10.0
|
QBCTF-M10 -10.0
|
M10 x 1.5
|
10
|
10
|
20
|
|
|
QBCTF-M12 -10.0
|
M12 x 1.5
|
12
|
10
|
20
|
|
AD13.0
|
QBCTF-M12 -13.0
|
M12 x 1.5
|
12
|
10
|
20
|
|
|
QBCTF-M16 -13.0
|
M16 x 1.5
|
16
|
10
|
20
|
|
|
QBCTF-M18 -13.0
|
M18 x 1.5
|
18
|
10
|
20
|
|
|
QBCTF-M20 -13.0
|
M20 x 1.5
|
20
|
10
|
20
|
|
AD15.8
|
QBCTF-M16 -15.8
|
M16 x 1.5
|
16
|
12.5
|
20
|
|
|
QBCTF-M18 -15.8
|
M18 x 1.5
|
18
|
12.5
|
20
|
|
|
QBCTF-M20 -15.8
|
M20 x 1.5
|
20
|
12.5
|
20
|
|
AD18.5
|
QBCTF-M18-18.5
|
M18 x 1.5
|
18
|
12.5
|
20
|
|
|
QBCTF-M20 -18.5
|
M20 x 1.5
|
20
|
12.5
|
20
|
|
|
QBCTF-M22 -18.5
|
M22 x 1.5
|
22
|
12.5
|
20
|
|
AD21.2
|
QBCTF-M20 -21.2
|
M20 x 1.5
|
20
|
13
|
10
|
|
|
QBCTF-M22 -21.2
|
M22 x 1.5
|
22
|
13
|
10
|
|
|
QBCTF-M24 -21.2
|
M24 x 1.5
|
24
|
13
|
10
|
|
|
QBCTF-M25 -21.2
|
M25 x 1.5
|
25
|
13
|
10
|
|
AD25.0
|
QBCTF-M25 -25.0
|
M25 x 1.5
|
25
|
13
|
10
|
|
AD28.5
|
QBCTF-M25 -28.5
|
M25 x 1.5
|
25
|
13
|
10
|
|
|
QBCTF-M27 -28.5
|
M27 x 1.5
|
27
|
13
|
10
|
|
|
QBCTF-M30 -28.5
|
M30 x 1.5
|
30
|
13
|
10
|
|
|
QBCTF-M30 -28.5-2
|
M30 x 2
|
30
|
13
|
10
|
|
|
QBCTF-M32 -28.5
|
M32 x 1.5
|
32
|
13
|
10
|
|
AD34.5
|
QBCTF-M32 -34.5
|
M32 x 1.5
|
32
|
14
|
5
|
|
|
QBCTF-M36 -34.5
|
M36 x 1.5
|
36
|
14
|
5
|
|
|
QBCTF-M36 -34.5-2
|
M36 x 2
|
36
|
14
|
5
|
|
|
QBCTF-M40 -34.5
|
M40 x 1.5
|
40
|
14
|
5
|
|
AD42.5
|
QBCTF-M40 -42.5
|
M40 x 1.5
|
40
|
15
|
5
|
|
|
QBCTF-M42 -42.5
|
M42 x 1.5
|
42
|
15
|
5
|
|
|
QBCTF-M48 -42.5
|
M48 x 1.5
|
48
|
15
|
5
|
|
|
QBCTF-M48 -42.5-2
|
M48 x 2
|
48
|
15
|
5
|
|
|
QBCTF-M50 -42.5
|
M50 x 1.5
|
50
|
15
|
5
|
|
AD54.5
|
QBCTF-M50 -54.5
|
M50 x 1.5
|
50
|
16
|
1
|
|
|
QBCTF-M60 -54.5
|
M60 x 1.5
|
60
|
16
|
1
|
|
|
QBCTF-M63 -54.5
|
M63 x 1.5
|
60
|
16
|
1
|
|
AD10.0
|
QBCTF-PG7 -10.0
|
PG7
|
12.4
|
8.5
|
20
|
|
AD13.0
|
QBCTF-PG9 -13.0
|
PG9
|
15.2
|
10
|
20
|
|
AD15.8
|
QBCTF-PG11 -15.8
|
PG11
|
18.4
|
12.5
|
20
|
|
AD18.5
|
QBCTF-PG13.5 -18.5
|
PG13.5
|
20.4
|
12.5
|
20
|
|
AD21.2
|
QBCTF-PG16 -21.2
|
PG16
|
22.5
|
13
|
10
|
|
AD25
|
QBCTF-PG21 -25
|
PG21
|
28.3
|
13
|
10
|
|
AD28.5
|
QBCTF-PG21 -28.5
|
PG21
|
28.3
|
13
|
10
|
|
AD34.5
|
QBCTF-PG29 -34.5
|
PG29
|
37
|
14
|
5
|
|
AD42.5
|
QBCTF-PG36 -42.5
|
PG36
|
47
|
15
|
5
|
|
AD54.5
|
QBCTF-PG42 -54.5
|
PG42
|
54
|
16
|
1
|
|
|
QBCTF-PG48 -54.5
|
PG48
|
59.3
|
16
|
1
|
|
AD10.0
|
QBCTF-G1/4 -10.0
|
G(PF) 1/4
|
13.1
|
8.5
|
20
|
|
AD13.0
|
QBCTF-G3/8 -13.0
|
G(PF) 3/8
|
16.6
|
10
|
20
|
|
AD15.8
|
QBCTF-G3/8 -15.8
|
G(PF) 3/8
|
16.6
|
12.5
|
20
|
|
|
QBCTF-G1/2 -15.8
|
G(PF) 1/2
|
20.9
|
12.5
|
20
|
|
AD18.5
|
QBCTF-G1/2 -18.5
|
G(PF) 1/2
|
20.9
|
12.5
|
20
|
|
AD21.2
|
QBCTF-G1/2 -21.2
|
G(PF) 1/2
|
20.9
|
13
|
10
|
|
|
QBCTF-G3/4 -21.2
|
G(PF) 3/4
|
26.4
|
13
|
10
|
|
AD25.0
|
QBCTF-G3/4 -25
|
G(PF) 3/4
|
26.4
|
13
|
10
|
|
AD28.5
|
QBCTF-G3/4 -28.5
|
G(PF) 3/4
|
26.4
|
13
|
10
|
|
AD34.5
|
QBCTF-G1 -34.5
|
G(PF) 1
|
33.2
|
14
|
5
|
|
AD42.5
|
QBCTF-G1 1/4 -42.5
|
G(PF) 1 1/4
|
41.9
|
15
|
5
|
|
AD54.5
|
QBCTF-G1 1/2 -54.5
|
G(PF) 1 1/2
|
48
|
16
|
1
|
|
|
QBCTF-G2 -54.5
|
G(PF) 2
|
60
|
16
|
1
|
|
AD21.2
|
QBCTF-PF1/2-21.2
|
G(PF)1/2
|
20.9
|
15
|
10
|
|
|
QBCTF-PF3/4-21.2
|
G(PF)3/4
|
26.4
|
15
|
10
|
|
AD28.5
|
QBCTF-PF3/4-28.5
|
G(PF)3/4
|
26.4
|
15
|
10
|
|
AD34.5
|
QBCTF-PF1-34.5
|
G(PF)1
|
33.2
|
15
|
5
|
|
AD42.5
|
QBCTF-PF1 1/4-42.5
|
G(PF)1 1/4
|
41.9
|
15
|
5
|
|
AD54.5
|
QBCTF-PF1 1/2-54.5
|
G(PF)1 1/2
|
48
|
15
|
1
|
|
|
QBCTF-PF2-54.5
|
G(PF)2
|
60
|
15
|
1
|
|
AD60
|
QBCTF-PF1 1/2-60
|
G(PF)1 1/2
|
48
|
15
|
1
|
|
|
QBCTF-PF2-60
|
G(PF)2
|
60
|
15
|
1
|
|
|
|
