Thread: Metric, PG, G(PF), and NPT thread

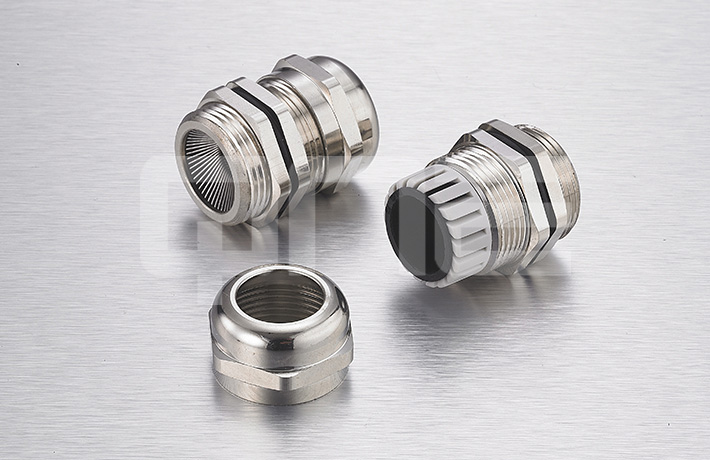

Materials: Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).
Protection degree: IP68，IP69K
Working temperature: -40℃to 100℃
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
螺牙规格
Thread
|
产品编号
Item No.
|
线缆范围
Cable Range
mm
|
螺纹外径
Thread O.D.
C1 mm
|
螺纹长度
Thread Length C2 mm
|
扳手尺寸
螺帽/螺母
Spanner Size F1&A2 mm
|
|
M12x1.5
|
BCGL-EMS-M12S-6.5
|
3-6.5
|
12
|
6.5
|
14/14
|
|
M16x1.5
|
BCGL-EMS-M16S-8
|
4-8
|
16
|
8
|
22/22
|
|
BCGL-EMS-M16-10
|
5-10
|
16
|
8
|
24/22
|
|
M20x1.5
|
BCGL-EMS-M20S-12
|
6-12
|
20
|
8
|
22/22
|
|
BCGL-EMS-M20-14
|
10-14
|
20
|
8
|
24/22
|
|
M25x1.5
|
BCGL-EMS-M25M-14
|
10-14
|
25
|
9
|
24/27
|
|
BCGL-EMS-M25S-16
|
12-16
|
25
|
9
|
27/27
|
|
BCGL-EMS-M25-18
|
14-18
|
25
|
9
|
30/27
|
|
M32x1.5
|
BCGL-EMS-M32-22
|
15-22
|
32
|
10
|
35/35
|
|
