Thread: Metric, PG, G(PF), and NPT thread

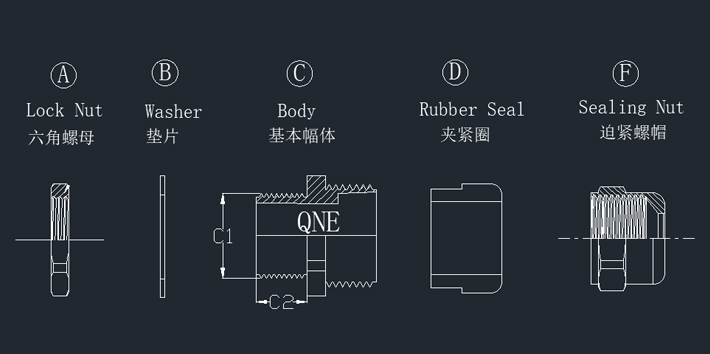

Materials：Stainless steel for A. C. F parts, special high temperature resistance rubber for B. D parts. (Accept to make super quality high temperature resistance rubber).
Working temperature: -50℃ to 180℃;（-60℃至220℃ is available upon request）
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable RangeФ(mm)
|
螺纹外径
Thread O.D.
C1(mm)
|
螺纹长度
Thread Length
C2(mm)
|
扳手径
Spanner Size F&A
(mm)
|
包装
Std.Pkg
(pcs)
|
|
M8 x 1.25
|
HT-SSCG-M8 -3.8
|
2-3.8
|
8
|
5.5
|
12/12
|
20
|
|
M10 x 1.5
|
HT-SSCG-M10 -5.5
|
3.5-6.5
|
10
|
6.5
|
14/14
|
20
|
|
M12x 1.5
|
HT-SSCG-M12S-6.5
|
3.5-6.5
|
12
|
7
|
14/15
|
20
|
|
HT-SSCG-M12-5.5
|
3-5.5
|
12
|
8
|
18/15
|
10
|
|
HT-SSCG-M12-8
|
4.5-8
|
12
|
8
|
18/15
|
10
|
|
M16x 1.5
|
HT-SSCG-M16S-5.5
|
3-5.5
|
16
|
9
|
18/20
|
10
|
|
HT-SSCG-M16S-8
|
4.5-8
|
16
|
9
|
18/20
|
10
|
|
HT-SSCG-M16-7
|
4-7
|
16
|
9
|
22/20
|
10
|
|
HT-SSCG-M16-10
|
6-10
|
16
|
9
|
22/20
|
10
|
|
M20x 1.5
|
HT-SSCG-M20S-9
|
4.5-9
|
20
|
10
|
24/24
|
10
|
|
HT-SSCG-M20S-12.5
|
7-12.5
|
20
|
10
|
24/24
|
10
|
|
HT-SSCG-M20-11
|
7-11
|
20
|
10
|
26/24
|
10
|
|
HT-SSCG-M20-14
|
9-14
|
20
|
10
|
26/24
|
10
|
|
M25x 1.5
|
HT-SSCG-M25S-11
|
7-11
|
25
|
12
|
25/30
|
10
|
|
HT-SSCG-M25S-14
|
9-14
|
25
|
12
|
25/30
|
10
|
|
HT-SSCG-M25-16
|
10-16
|
25
|
12
|
32/30
|
10
|
|
HT-SSCG-M25-18
|
14-18
|
25
|
12
|
32/30
|
10
|
|
M32x 1.5
|
HT-SSCG-M32 -22
|
16-22
|
32
|
12
|
40/38
|
10
|
|
HT-SSCG-M32-25
|
18-25
|
32
|
12
|
40/38
|
10
|
|
M40x 1.5
|
HT-SSCG-M40 -26
|
21-26
|
40
|
15
|
50/46
|
10
|
|
HT-SSCG-M40-31
|
24-31
|
40
|
15
|
50/46
|
10
|
|
M50x 1.5
|
HT-SSCG-M50 -33
|
25-33
|
50
|
15
|
59/59
|
10
|
|
HT-SSCG-M50-41
|
31-41
|
50
|
15
|
59/59
|
10
|
|
M63 x 1.5
|
HT-SSCG-M63 -45
|
39-45
|
63
|
15
|
69/69
|
5
|
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable RangeФ(mm)
|
螺纹外径
Thread O.D.
C1(mm)
|
螺纹长度
Thread Length
C2(mm)
|
扳手径
Spanner Size F&A
(mm)
|
包装
Std.Pkg
(pcs)
|
|
PG7
|
HT-SSCG-PG7S-6.5
|
2-6.5
|
12.5
|
7
|
14/14
|
20
|
|
HT-SSCG-PG7-5.5
|
3-5.5
|
12.5
|
8
|
18/18
|
10
|
|
HT-SSCG-PG7-8
|
4.5-8
|
12.5
|
8
|
18/18
|
10
|
|
PG9
|
HT-SSCG-PG9 -5.5
|
3-5.5
|
15.2
|
8
|
18/18
|
10
|
|
HT-SSCG-PG9-8
|
4.5-8
|
15.2
|
8
|
18/18
|
10
|
|
PG11
|
HT-SSCG-PG11-7
|
4-7
|
18.6
|
9
|
22/22
|
10
|
|
HT-SSCG-PG11-10
|
6-10
|
18.6
|
9
|
22/22
|
10
|
|
PG13.5
|
HT-SSCG-PG13.5-9
|
4.5-9
|
20.4
|
9.5
|
24/24
|
10
|
|
HT-SSCG-PG13.5-12.5
|
7-12.5
|
20.4
|
9.5
|
24/24
|
10
|
|
PG16
|
HT-SSCG-PG16-11
|
7-11
|
22.5
|
9.5
|
25/25
|
10
|
|
HT-SSCG-PG16-14
|
9-14
|
22.5
|
9.5
|
25/25
|
10
|
|
PG21
|
HT-SSCG-PG21-16
|
10-16
|
28.3
|
12
|
30/30
|
10
|
|
HT-SSCG-PG21-18
|
14-18
|
28.3
|
12
|
30/30
|
10
|
|
PG29
|
HT-SSCG-PG29-22
|
16-22
|
37
|
12
|
40/40
|
10
|
|
HT-SSCG-PG29-25
|
18-25
|
37
|
12
|
40/40
|
10
|
|
PG36
|
HT-SSCG-PG36-26
|
21-26
|
47
|
15
|
50/50
|
10
|
|
HT-SSCG-PG36-31
|
24-31
|
47
|
15
|
50/50
|
10
|
|
PG42
|
HT-SSCG-PG42-33
|
25-33
|
54
|
15
|
59/59
|
10
|
|
HT-SSCG-PG42-41
|
31-41
|
54
|
15
|
59/59
|
10
|
|
PG48
|
HT-SSCG-PG48-45
|
35-45
|
59.3
|
15
|
69/69
|
5
|
|
