Thread: Metric, PG, G(PF), and NPT thread

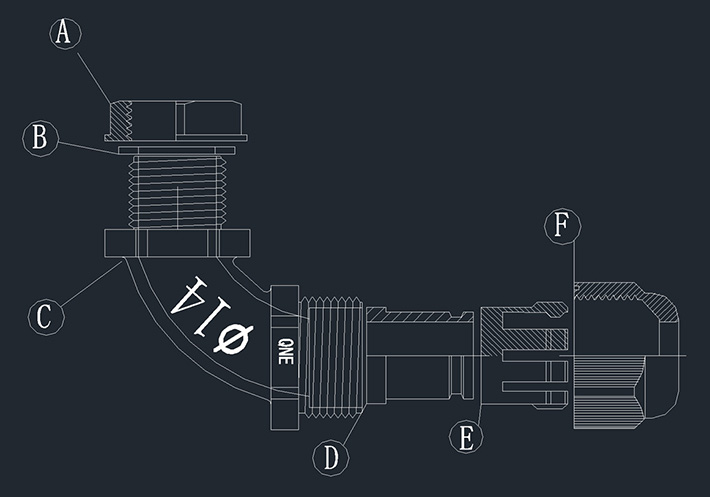

Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. E. F parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/ alkali, etc ).
Protection degree: IP68
Working temperature: -40℃ to 100℃

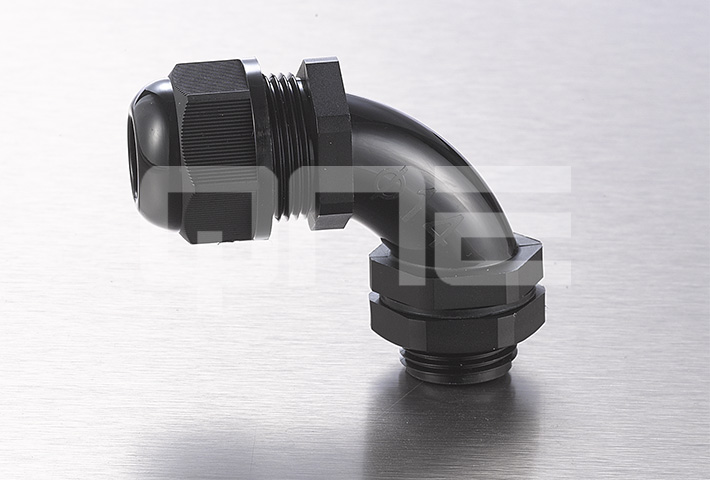

Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency. 90°design to protect cable from breakage.
Color: Black(RAL9005)、gray(RAL7035),other color available upon request.
Thread |
Item.No. |
Cable Range Ф(mm) |
Thread O.D. C1(mm) |
Thread Length C2(mm) |
Spanner Size A&F(mm) |
Std.Pkg (pcs) |
M12×1.5 |
QECG-M12A-5.5-ST |
4-5.5mm |
12mm |
10mm |
22/22 |
50 |
QECG-M12A-8-ST |
6-8mm |
12mm |
10mm |
22/22 |
50 |
M16×1.5 |
QECG-M16A-7-ST |
4-7mm |
16mm |
10mm |
22/22 |
50 |
QECG-M16A-10-ST |
6-10mm |
16mm |
10mm |
22/22 |
50 |
M20×1.5 |
QECG-M20A-11 |
6-11mm |
20mm |
15mm |
27/27 |
50 |
QECG-M20A-14 |
9-14mm |
20mm |
15mm |
27/27 |
50 |
|
QECG-M20AZ-13 |
10-13mm |
20mm |
15mm |
27/33 |
50 |
QEECG-M20AZ-15 |
12-15mm |
20mm |
15mm |
27/33 |
50 |
M25×1.5 |
QECG-M25A-16 |
10-16mm |
25mm |
15mm |
33/33 |
50 |
QECG-M25A-18 |
13-18mm |
25mm |
15mm |
33/33 |
50 |
M32×1.5 |
QECG-M32A-22 |
15-22mm |
32mm |
15mm |
41/42 |
10 |
QECG-M32A-25 |
18-25mm |
32mm |
15mm |
41/42 |
10 |
M40×1.5 |
QECG-M40A-26 |
20-26mm |
40mm |
20mm |
50/52 |
10 |
QECG-M40A-31 |
24-31mm |
40mm |
20mm |
50/52 |
10 |
M50×1.5 |
QECG-M50A-36 |
25-33mm |
50mm |
20mm |
50/52 |
10 |
QECG-M50A-41 |
33-41mm |
50mm |
20mm |
50/52 |
10 |
|
