Thread: M、G(PF)

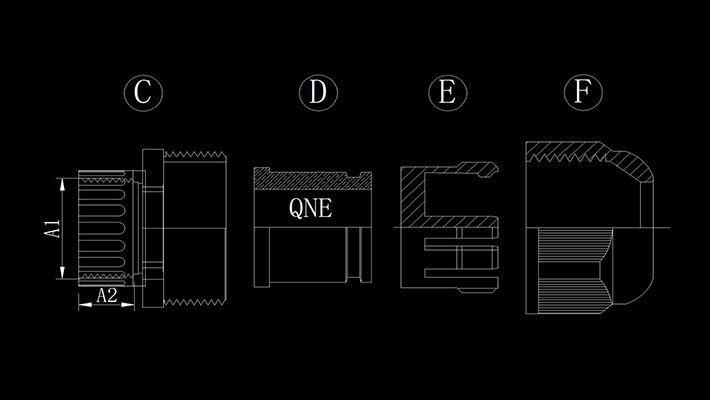

Materials: UL approved Halogen-Free Nylon PA66PA 66(Flammability UL 94V-2)for C. F parts; (Accept to make flammability UL 94V-0); Weather-resistant EPDM rubber for . D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Product features: Standard female cable glands, suitable for corresponding parts male thread articulation.
Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.
编号
Item.No.
|
电缆范围
Cable Range
Ф(mm)
|
螺纹内径
thread inside diameter
A1(MM)
|
螺纹长度
Thread Length
A2(mm)
|
NNCGD-M16-H1-5.5
|
3--5.5
|
M16X1.5
|
13
|
NNCGD-M16-H1-8
|
4--8
|
M16X1.5
|
13
|
NNCGD-M20-H1-7
|
3--7
|
M20X1.5
|
14
|
NNCGD-M20-H1-10
|
6--10
|
M20X1.5
|
14
|
NNCGD-M22-H1-9
|
5--9
|
M22X1.5
|
14
|
NNCGD-M22-H1-12.5
|
8--12.5
|
M22X1.5
|
14
|
NNCGD-M25-H1-11
|
6--11
|
M25x1.5
|
15
|
NNCGD-M25-H1-14
|
9--14
|
M25x1.5
|
15
|
NNCGD-M30-H1-16
|
10--16
|
M30x2
|
15
|
NNCGD-M30-H1-18
|
13--18
|
M30x2
|
15
|
NNCGD-G1/2-H1-11
|
6--11
|
PF1/2
|
16
|
NNCGD-G1/2-H1-14
|
9--14
|
PF1/2
|
16
|
NNCGD-G3/4-H1-11
|
6--11
|
PF3/4
|
16
|
NNCGD-G3/4-H1-14
|
9--14
|
PF3/4
|
16
|
|
